Digital Voltage Regulator Module
The DC-DC converter was implemented using a TI MSP430 microcontroller (MCU). The MCU run PID control program and use an ADC to fetch the output voltage information. The following photo illustrates the analog module:
The block diagram of the MCU system is as this:

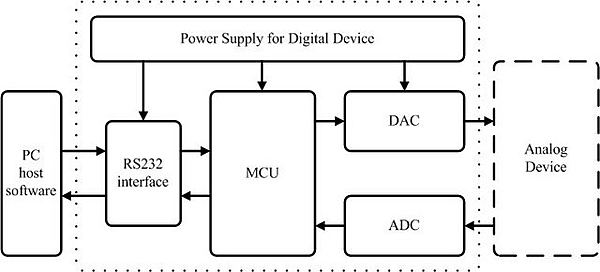

The block diagram of the MCU system is as this:
